ULTRAVIOLET DISINFECTION SYSTEMS
Proven, Affordable, Environmentally Friendly

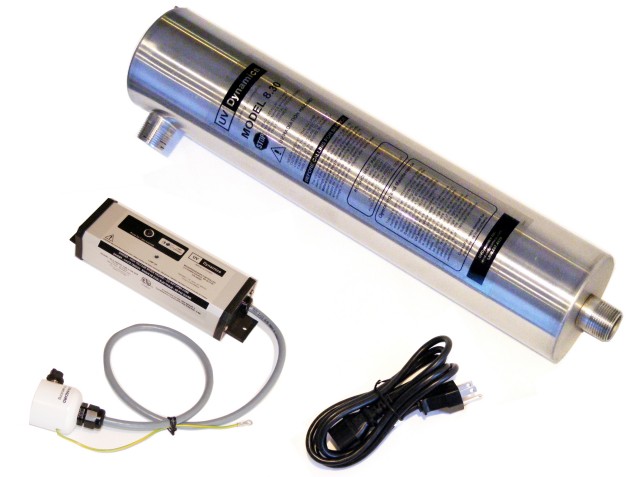

UVD320E

PRODUCT FEATURES

  • Flow rate of 10gpm (37L/min) delivers UV dose of 30mj/cm2
  • Flow rate of 8gpm (30L/min) delivers UV dose of 40mj/cm2
  • Passivated and polished 304 stainless steel reactor measuring 3.5” x 18”
  • 9000hr long life coated UV lamp
  • Microprocessor controlled UV power source with audible and visible lamp failure alarms
  • Annual lamp change reminder timer
  • Lamp life remaining feature
  • ¾” MNPT fittings
  • Domed quartz sleeve to simplify servicing
  • No tools required for regular servicing
  • Easy-service lamp connector
